VMware vSphare Resource utilization

  VMware vSphare Resource utilization

What is vMotion-

vMotion is a feature that allows running VMs to be migrated from one physical ESXi host to another physical ESXi host with no downtime to end users.



How VMware vSphere helps balance the utilization of resources-

vMotion:- vMotion, which is generically known as live migration, is used to manually balance resource utilization between two or more  ESXi hosts.

Storage vMotion:- Storage vMotion is the storage equivalent of vMotion, and it is used to manually balance storage utilization between two or more datastores.

vSphere Distributed Resource Scheduler (DRS):- vSphere Distributed Resource Scheduler (DRS) is used to automatically balance resource utilization among two or more ESXi hosts.

Storage DRS:- Storage DRS is the storage equivalent of DRS, and it is used to automatically balance storage utilization among two or more datastores.

What are the configuration requirements of a successful vMotion-

ESXi hosts requirements for vMotion:

Shared storage:-

è  Shared storage for the VM files (a VMFS or NFS datastore).

Dedicated VMkernel port for vMotion:-

 è A Gigabit Ethernet or faster network interface card (NIC) with a VMkernel port defined and enabled for vMotion on each ESXi host.

Describe briefly how vMotion works-

1. Migration initiated:- 2.  Active memory pages of source VM precopied:- 3. Source ESXi host is 'quiesced' for memory bitmap copy 4. Memory bitmap address contains copied:-  5. VM starts on target host:- 6. RARP message is sent 7. Source host memory is deleted:-

1. Migration initiated:- An administrator initiates a migration of a running VM (VM1) from one ESXi host (HOST-1) to another ESXi host (HOST-2).

2.  Active memory pages of source VM precopied:-  As the active memory address is copied from the source host to the target host, pages in memory could be changed because VM is still servicing. ESXi handles this by keeping a log of changes that occur in the memory of the VM on the source host. This log is called a memory bitmap.

3. Source ESXi host is 'quiesced' for memory bitmap copy:-  VM1 on the source ESXi host (HOST-1) is quiesced. This means that it is still in memory but is no longer servicing client requests for data. The memory bitmap file is then transferred to the target (HOST-2). As source VM is quiesced memory does not change.

                    Remembar-The Memory Bitmap

[The memory bitmap does not include the contents of the memory address that has changed; it simply includes the addresses of the memory that has changed — often referred to as the dirty memory.]

4. Memory bitmap address contains copied:-The target host (HOST-2) reads the addresses in the memory bitmap file and requests the contents of those addresses from the source (HOST-1).

5. VM starts on target host:- After copy VM starts on that target host. Note that this is not a reboot — the VM’s state is in RAM, so the host simply enables it.

 6. RARP message is sent:- A Reverse Address Resolution Protocol (RARP) message is sent by the target host to register its MAC address against the physical switch port to which it is connected. Now physical switch sends network packets to target ESXi host instead of source.

7. Source host memory is deleted:-

What are the points that you should keep in mind for a successful vMotion-

Networking

è Identical VMkernel ports, virtual switches, or same Distributed Switch :-

è Identical port group and same subnet or vlan:-

CPU

è Processors compatibility:-

# Same CPU vendor :- (Intel or AMD).

# Same CPU family:-  (Xeon 55xx, Xeon  56xx, or Opteron).

# Same CPU features:-  the presence of SSE2, SSE3, and SSE4, and NX or XD.

# Virtualization enabled:- For 64-bit VMs, CPUs must have virtualization technology  enabled (Intel VT or AMD-v).

Host and VM

èNo Device physically available to only one host:- The VM must not be connected to any device physically available to only one ESXi host. This includes disk storage, CD/DVD drives, floppy drives, serial ports, or parallel ports.

è No internal-only vSwitch:-

è No CPU affinity Rule:-

è Shared Sorage for hosts:-

How vMotion provide High Availability futures-

vMotion can prevent planned downtime by live migration of VMs but it is not a high-availability feature. So it cannot protect against any unplanned host failure.

What is virtual machine CPU masking -

Ability to create custom CPU masks for CPU features on a per-VM basis. It’s also important to note that, with one exception, this custom CPU masks for easy vMotion compatibility is completely unsupported by VMware.

What is the one exception?-On a per-VM basis, show or mask the No Execute / Execute Disable (NX/XD) bit in the host CPU. This specific instance of CPU masking for easy vMotion compatibility is fully supported by VMware.

What is NX/XD bit-

AMD’s Execute Disable (XD) and Intel’s NoExecute (NX) are features of processors that mark memory pages as data only, which prevents a virus from running executable code at that memory address. Windows 2003 SP1 and Windows XP SP2 support this CPU feature.

A certain vendor has just released a series of patches for some of the guest OS’s in your virtualized infrastructure. You request an outage window from your supervisor, but your supervisor says “just use vMotion to prevent downtime”. Is your supervisor correct? Why or why not?

Your supervisor is incorrect. vMotion can be used to move running VMs from one physical host to another, but it does not address outages within a guest OS because of reboots or other malfunctions

Is vMotion a solution to prevent unplanned downtime-

No. vMotion is a solution to address planned downtime of the ESXi hosts by manually moving live VMs to other host.

What is EVC-

EVC:-  vMotion requires compatible CPU families on both source and the destination ESXi hosts. For that vSphere offers “Enhanced vMotion Compatibility (EVC)”. This can mask differences between CPU families in order to maintain successful vMotion.

Can you change the EVC level for a cluster while there are VMs running on hosts in the cluster -

No, you cannot change the EVC level when VMs are running on the host. New EVC level means new CPU masks must be calculated and applied. CPU masks can be applied only when VMs are powered off.

Describe in details what is VMware Enhanced vMotion Compatibility (EVC)-

Recognizing that potential processor compatibility issues with vMotion could be a significant problem, VMware worked closely with both Intel and AMD to craft functionality that would address this issue. On the hardware side, Intel and AMD put functions in their CPUs that would allow them to modify the CPU ID value returned by the CPUs. Intel calls this functionality FlexMigration; AMD simply embedded this functionality into their existing AMD-V virtualization extensions. On the software side, VMware created software features that would take advantage of this hardware functionality to create a common CPU ID baseline for all the servers within a cluster. This functionality, originally introduced in VMware ESX/ESXi 3.5 Update 2, is called VMware Enhanced vMotion Compatibility.

vCenter Server performs some validation checks to ensure that the physical hardware included in the cluster is capable of supporting the selected EVC mode and processor baseline. If you select a setting that the hardware cannot support, the Change EVC Mode dialog box will reflect the incompatibility.

When you enable EVC and set the processor baseline, vCenter Server then calculates the correct CPU masks that are required and communicates that information to the ESXi hosts. The ESXi hypervisor then works with the underlying Intel or AMD processors to create the correct CPU ID values that would match the correct CPU mask. When vCenter Server validates vMotion compatibility by checking CPU compatibility, the underlying CPUs will return compatible CPU masks and CPU ID values. However, vCenter Server and ESXi cannot set CPU masks for VMs that are currently powered on.

When setting the EVC mode for a cluster, keep in mind that some CPU-specific features — such as newer multimedia extensions or encryption instructions, for example — could be disabled when vCenter Server and ESXi disable them via EVC. VMs that rely on these advanced extensions might be affected by EVC, so be sure that your workloads won’t be adversely affected before setting the cluster’s EVC mode.

What is vSphare DRS-

The ESXi hosts groups are called clusters. vSphere Distributed Resource Scheduler enables vCenter Server to automate the process of conducting vMotion migrations of VMs to help balance the load across ESXi hosts within a cluster. DRS can be as automated as desired, and vCenter Server has flexible controls about the behavior of DRS as well as the behavior of specific VMs within a DRS-enabled cluster.

What are the function of DRS-

DRS has the following two main functions:

Intelligent placement:-

l To decide which node of a cluster should run a VM when it’s powered on, a function often referred to as intelligent placement.

Recommendation  or Automation:-

l To evaluate the load on the cluster over time and either make recommendations for migrations or use vMotion to automatically move VMs to create a more balanced cluster workload.

How DRS works?

@ vSphere DRS runs as a process within vCenter Server, which means that you must have vCenter Server in order to use vSphere DRS.

@ By default, DRS checks every five minutes (or 300 seconds) to see if the cluster’s workload is balanced.

@ DRS is also invoked by certain actions within the cluster, such as adding or removing an ESXi host or changing the resource settings of a VM (such as reservations, shares, and limits).

@ When DRS is invoked, it will calculate the imbalance of the cluster, apply any resource controls (such as reservations, shares, and limits), and, if necessary, generate recommendations for migrations of VMs within the cluster.

@ Depending on the configuration of vSphere DRS, these recommendations could be applied automatically, meaning that VMs will automatically be migrated between hosts by DRS in order to maintain cluster balance (or, put another way, to minimize cluster imbalance).

@ Fortunately, if you can retain control that how aggressively DRS will automatically move VMs around the cluster.

What are DRS automation level-

(i)Manual (ii) Partially Automated (iii) Fully Automated

Manual-Initial VM placement and VM migrations both are manual.

Partially Automated:-Initial VM placement is automated, but VM migrations are still manual.

Fully Automated:- Initial VM placement and VM migrations both are automated.

DRS takes Automatic vMotion decisions based on the selected automation level (the slider bar).

There are five positions for the slider bar on the Fully Automated setting of the DRS cluster. The values of the slider bar range from Conservative to Aggressive and automate 5 priority recommendations accordingly.

You want to take advantage of vSphere DRS to provide some load balancing of virtual workloads (VMs) within your environment. However, because of business constraints, you have a few workloads that should not be automatically moved to other hosts using vMotion. Can you use DRS? If so, how can you prevent these specific workloads from being affected by DRS?

Yes, you can use DRS. Enable DRS on the cluster, and set the DRS automation level appropriately. For those VMs that should not be automatically migrated by DRS, configure the DRS automation level on a per-VM basis to Manual. This will allow DRS to make recommendations on migrations for these specific workloads (VMs) but will not actually perform the migrations.

What is maintenance mode?

Maintenance mode is a setting on a ESXi host that prevents the ESXi host from performing any VM related functions. VMs currently running on a ESXi host being put into maintenance mode must be shut down or moved to another host before the ESXi host will actually enter maintenance mode. This means that an ESXi host in a DRS-enabled cluster will automatically generate priority 1 recommendations to migrate all VMs to other hosts within the cluster.

What is Distributed Resource Scheduler (DRS) Rules or affinity rules-

vSphere DRS supports three types of DRS rules:-

[1] VM affinity rules- “Keep Virtual Machines Together” -Keeps VMs together on the same ESXi host

[2] VM anti-affinity rules- “Separate Virtual Machines” - Keeps VMs seperate on the different ESXi host.

[3] Host affinity rules- “Virtual Machines To Hosts” - Keeps VM DRS group and Host DRS group together or separate.

The host affinity rule brings together a VM DRS group and a host DRS group according to preferred rule behavior. There are four host affinity rule behaviors:

l Must Run On Hosts In Group

l Should Run On Hosts In Group

l Must Not Run On Hosts In Group

l Should Not Run On Hosts In Group

What is per-VM Distributed Resource Scheduler Settings-

 The administrator can then selectively choose VMs that are not going to be acted on by DRS in the same way as the rest of the VMs in the cluster. However, the VMs should remain in the cluster to take advantage of high-availability features provided by vSphere HA.

The per-vM automation levels available include the following:

l Manual (Manual intelligent placement and vMotion)

l Partially Automated (automatic intelligent placement, manual vMotion)

l Fully Automated (automatic intelligent placement and vMotion)

l Default (inherited from the cluster setting)

l Disabled (vMotion disabled)



                         Storage vMotion :

What is Storage vMotion?

vMotion and Storage vMotion are like two sides of the same coin.  Storage vMotion, migrates a running VM’s virtual disks from one datastore to another datastore but leaves the VM executing — and therefore using CPU and memory resources — on the same ESXi host. This allows you to manually balance the “load” or storage utilization of a datastore by shifting a VM’s storage from one datastore to another. Like vMotion, Storage vMotion is a live migration.

How Storage vMotion works?

1. Nonvolatile files copy:- 2. Ghost or shadow VM created on destination datastore:- 3. Destination disk and mirror driver created:- 4. Single-pass copy of the virtual disk(s):- 5. vSphere quickly suspends and resumes in order to transfer control over to the ghost VM:- Source datastore files are deleted:-

1. Nonvolatile files copy:- First, vSphere copies over the nonvolatile files that makes up a VM: Ex- the configuration file (VMX), VMkernel swap file, (.SAWP) log files, and snapshots.

2. Ghost or shadow VM created on destination datastore:- Next, vSphere starts a ghost or shadow VM on the destination datastore using the nonvolatile files copied. Because this ghost VM does not yet have a virtual disk (that hasn’t been copied over yet), it sits idle waiting for its virtual disk.

3. Destination disk and mirror driver created:- Storage vMotion first creates the destination disk. Then a mirror device — a new driver that mirrors I/Os between the source and destination disk — is inserted into the data path between the VM and the underlying storage.

4. Single-pass copy of the virtual disk(s):- With the I/O mirroring driver in place, vSphere makes a single-pass copy of the virtual disk(s) from the source to the destination. As changes are made to the source, the I/O mirror driver ensures those changes are also reflected at the destination.

5. vSphere quickly suspends and resumes in order to transfer control over to the ghost VM:- When the virtual disk copy is complete, vSphere quickly suspends and resumes in order to transfer control over to the ghost VM created on the destination datastore earlier. This generally happens so quickly that there is no disruption of service, like with vMotion.

6. Source datastore files are deleted:- The files on the source datastore are deleted. It’s important to note that the original files aren’t deleted until it’s confirmed that the migration was successful; this allows vSphere to simply fall back to its original location if an error occurs. This helps prevent data loss situations or VM outages because of an error during the Storage vMotion process.

What we should remember when using Storage vMotion with Raw Device Mappings (RDM)?

There are two type of Raw Device Mappings (RDM’s) - physical mode RDM and virtual mode RDM. Virtual mode RDM use one VMDK mapping file to give raw LUN access. Be careful when using Storage vMotion with virtual mode (RDMs).

If you want to migrate only the VMDK mapping file, be sure to select “Same Format As Source” for the virtual disk format. If you select a different format, virtual mode RDMs will be converted into VMDKs as part of the Storage vMotion operation (physical mode RDMs are not affected). Once an RDM has been converted into a VMDK, it cannot be converted back into an RDM again.



                                              Storage DRS :

What is Storage DRS?

<> Storage DRS is a feature that is new to vSphere 5.

<>Storage DRS brings automation to the process of balancing storage capacity and I/O utilization.

<>Storage DRS uses datastore clusters and can operate in manual or Fully Automated mode.

<>Numerous customizations exist — such as custom schedules, VM and VMDK anti-affinity rules, and threshold settings etc.

<>SDRS can perform this automated storage balancing not only on the basis of space utilization but also on the basis of I/O load balancing.

              Similarities between DRS and SDRS-

l Just as vSphere DRS uses clusters as a collection of hosts on which to act, SDRS uses data store clusters as collections of datastores on which it acts.

l Just as vSphere DRS can perform both initial placement and manual and automatic balancing, SDRS also performs initial placement of VMDKs and manual or automatic balancing of VMDKs.

l Just as vSphere DRS offers affinity and anti-affinity rules to influence recommendations, SDRS offers VMDK affinity and anti-affinity functionality.

Guidelines for datastores cluster-

VMware provides the following guidelines for datastores that are combined into datastore clusters:

(A)No NFS and VMFS combination:-(B) No replicated and nonreplicated datastore combination:- (C) No ESX/ESXi 4.x and earlier host connection with ESXi 5 datastore:-(D) No Datastores shared across multiple datacenters:- (E) Datastores of different sizes , I/O capacities and vendors are supported

l No NFS and VMFS combination:- Datastores of different sizes and I/O capacities can be combined in a datastore cluster. Additionally, datastores from different arrays and vendors can be combined into a datastore cluster. However, you cannot combine NFS and VMFS datastores in a datastore cluster.

l No replicated and nonreplicated datastore combination:-

l No ESX/ESXi 4.x and earlier host connection with ESXi 5 datastore:- All hosts attached to a datastore in a datastore cluster must be running ESXi 5 or later. ESX/ESXi 4.x and earlier cannot be connected to a datastore that you want to add to a datastore cluster.

l No Datastores shared across multiple datacenters:-

What are the relations between Storage I/O Control and Storage DRS Latency Thresholds-

You’ll note that the default I/O latency threshold for SDRS (15 ms) is well below the default for SIOC (30 ms). The idea behind these default settings is that SDRS can make a migration to balance the load (if fully automated) before throttling becomes necessary.

What will happen if you put SDRS datastore in to maintenance mode-

When you enable SDRS datastores in to maintenance mode, migration recommendations are generated for registered VMs. However, SDRS datastore maintenance mode will not affect templates, unregistered VMs, or ISOs stored on that datastore.

  What are Storage DRS Automation levels-

SDRS offers two predefined automation levels, No Automation (Manual Mode) and Fully Automated.

No Automation (Manual Mode):- Recommendations for initial placement as well as recommendations for storage migrations based on the configured space and I/O thresholds.

Fully Automated Mode:- Automatic initial placement as well as storage migrations based on the configured space and I/O thresholds.

What is Storage DRS Schedule-Custom schedules enable vSphere administrators to specify times when the SDRS behavior should be different. For example, in your office SDRS runs in automatic mode but there are specific times when SDRS should be running in No Automation (Manual Mode). You can set times (Like night) when the space utilization or I/O latency thresholds should be different.

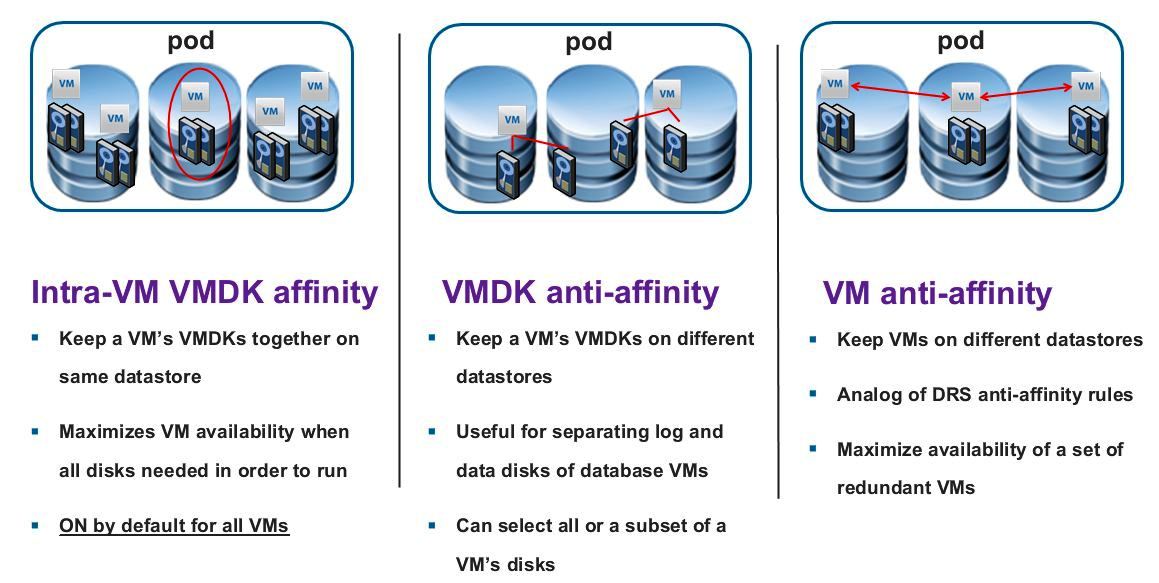

What is Storage DRS Rules?

(M)VMDK anti-affinity (N) VM anti-affinity rules (O) Keep VMDKs Together

Just as vSphere DRS has affinity and anti-affinity rules, SDRS offers vSphere administrators the ability to create VMDK anti-affinity and VM anti-affinity rules. These rules modify the behavior of SDRS to ensure that specific VMDKs are always kept separate (VMDK anti-affinity rule) or that all the virtual disks from certain VMs are kept separate (VM anti-affinity rule).

Administrators can use anti-affinity rules to keep VMs or VMDKs on separate datastores, but as you’ve already seen, there is no way to create affinity rules. Instead of requiring you to create affinity rules to keep the virtual disks for a VM together, vSphere offers a simple check box in the Virtual Machine Settings area of the datastore cluster properties.

To configure Storage DRS to keep all disks for a VM together, check the boxes in the Keep VMDKs Together column.

Name the two ways in which an administrator are notified that a Storage DRS recommendation has been generated-

First, an alarm is generated to note that an SDRS recommendation is present. You can view this alarm on the "Alarms" tab of the datastore cluster in "Datastores And Datastore Clusters" inventory view.

Second,In addition, the "Storage DRS" tab of the datastore cluster (visible in "Datastores And Datastore Clusters" inventory view) will list the current SDRS recommendations and give you the option to apply those recommendations.

What is a potential disadvantage of using drag and drop to add a datastore to a datastore cluster-

You can use drag and drop to add a datastore to an existing datastore cluster as well. Please note, that drag and drop won’t warn you that you’re adding a datastore that doesn’t have connections to all the hosts that are currently connected to the datastore cluster. So when using SDRS some host may find that a particular datastore is unreachable. To avoid this situation you should always use the "Add Storage" dialog box.

[When using drag and drop to add a datastore to a datastore cluster, the user is not notified if the datastore isn’t accessible to all the hosts that are currently connected to the datastore cluster. This introduces the possibility that one or more ESXi hosts could be “stranded” from a VM’s virtual disks if Storage DRS migrates them onto a datastore that is not accessible from that host.]

A fellow administrator is trying to migrate a VM to a different datastore and a different host, but the option is disabled (grayed out). Why-

Storage vMotion, like vMotion, can operate while a VM is running. However, in order to migrate a VM to both a new datastore and a new host, the VM must be powered off. VMs that are powered on can only be migrated using Storage vMotion or vMotion, but not both.

Name two features of Storage vMotion that would help administrators cope with storage related changes in their vSphere environment-

Old to new storage array èStorage vMotion can be used to facilitate no-downtime storage migrations from one type of storage array to a new or new type of storage array.

Between different types of storage èStorage vMotion can also migrate between different types of storage (FC to NFS, iSCSI to FC or FCoE).

Between different types of VMDKèMigration between different type of VMDK format (Thick, Thin):-
